State-of-the-art Office and Commercial Lighting: The RIMCLED ALGINE LED Panel
Discover the perfect symbiosis of innovative lighting technology and functional design with the RIMCLED ALGINE LED Panel. This high-quality panel is the ideal solution for modern workplaces, offices, shops, and public areas where efficient and adaptable lighting is required. Experience uniform and glare-free illumination that maximizes visual comfort and increases productivity.
Flexible Lighting Design for Every Requirement
The RIMCLED ALGINE LED Panel impresses with its versatility. With the integrated CCT (Correlated Color Temperature) function, you can continuously adjust the color temperature between 3000K (warm white), 4000K (neutral white), and 6000K (daylight white). This allows you to always create the right atmosphere – from relaxed and cozy to focused and alert. The panel's power can also be flexibly set in three stages (26W, 36W, or 46W) via a DIP switch on the power supply, enabling precise adaptation to the respective room use and lighting requirements. With an impressive luminous efficacy of up to 137 lm/W, the ALGINE panel sets new standards in energy efficiency.
High-Quality Workmanship and Durability
Made from a combination of robust aluminum and high-quality plastic, the RIMCLED ALGINE LED Panel offers excellent workmanship and durability. The diffuse cover ensures very good and shadow-free light distribution with a pleasant beam angle of 90°. With a guaranteed lifespan of 50,000 hours and a 5-year warranty, you are investing in a reliable and future-proof lighting solution. The low UGR value of <19 minimizes glare and contributes to fatigue-free work.
The panel is designed for indoor use and, thanks to its PZH certification, is also suitable for rooms with increased hygiene requirements. Both surface-mounted and recessed installation are possible, allowing for flexible integration into existing structures. The included mounting material simplifies installation.

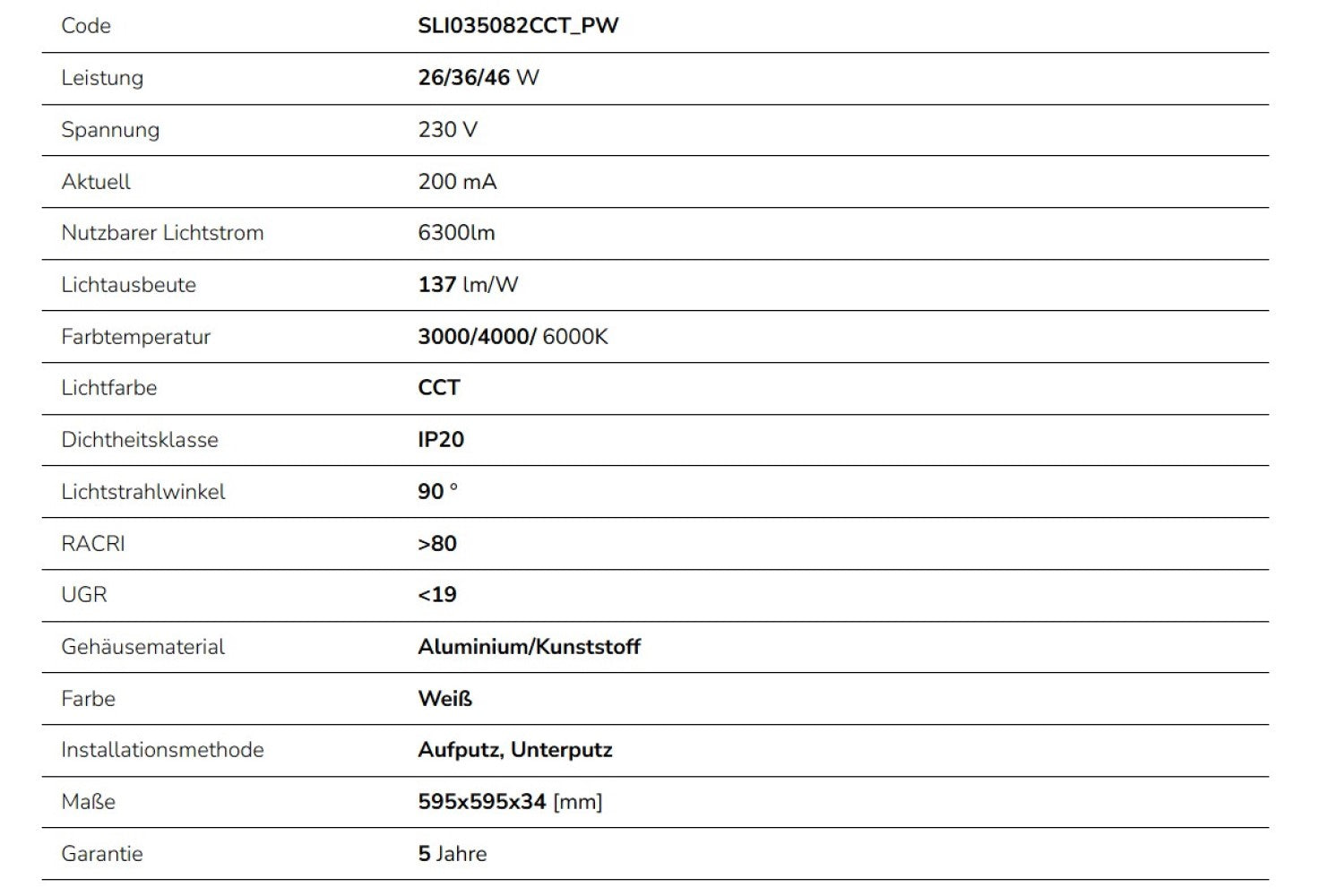

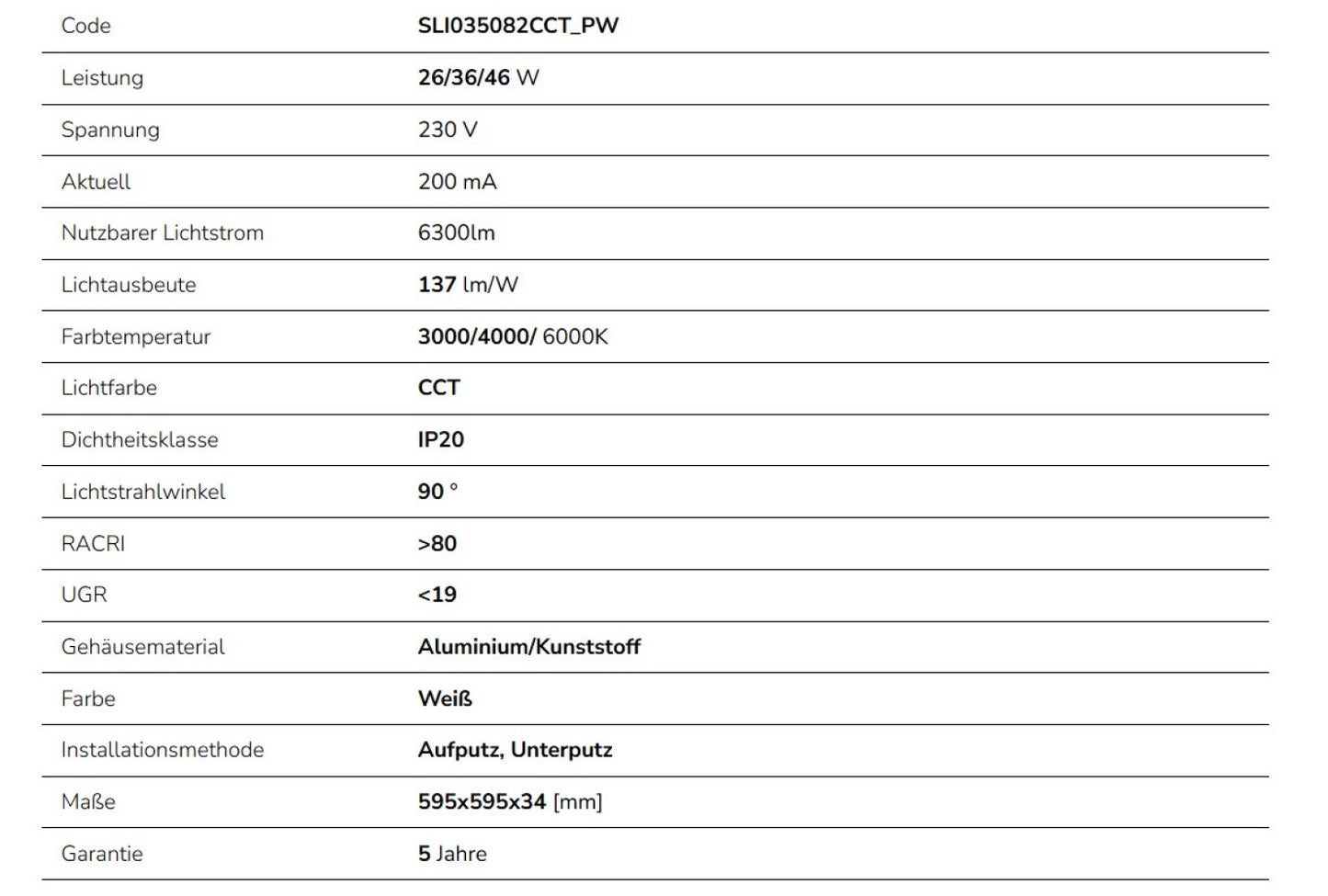

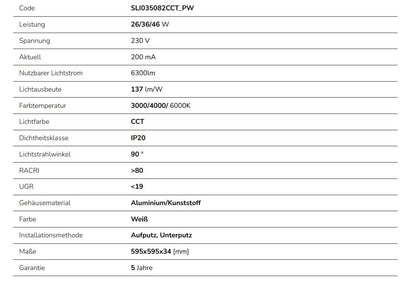

Technical Data at a Glance: RIMCLED ALGINE LED Panel
| Feature | Specification |
| Brand | RIMCLED |
| Model | ALGINE LED Panel (6-pack) |
| Part Number (HAN) | SLI035082CCT_PW |
| EAN | 5904433178822 |
| Lighting Technology | LED |
| Power | 26W / 36W / 46W (adjustable via DIP switch) |
| Rated Current | 200 mA |
| Voltage | 230 V |
| Energy Consumption | 46 kWh/1000h |
| Frequency | 50 Hz |
| Protection Class | I |
| Power Supply Included | Yes |
| Power Factor | 0.95 |
| Luminous Flux (max.) | 6300 lm (at 46W) |
| Luminous Flux (variable) | 3120 lm / 4320 lm / 5520 lm (at 26W/36W/46W) |
| Lamp Efficiency | 137 lm/W |
| Light Color | CCT (Adjustable) |
| Color Temperature | 3000K / 4000K / 6000K |
| Light Source Included | Yes (permanently installed) |
| Beam Angle | 90 ° |
| Operating Temperature Range | -20/+40 °C |
| Lifespan | 50000 h |
| Housing Material | Aluminum / Plastic |
| Dimensions | 595x595x34 mm |
| UGR Value | <19 |
| Protection Rating (IP) | IP20 |
| Housing Color | White |
| Mounting Method | Surface-mounted / Recessed |
| Application | Indoor, Offices, Commercial, Hygiene Areas |
| Dimmable | No (power adjustment via DIP switch) |
| CRI (Color Rendering Index) | >80 |
| Switching Cycles | 25000 |
| Other | DIP SWITCH for power and CCT adjustment, PZH-certified |

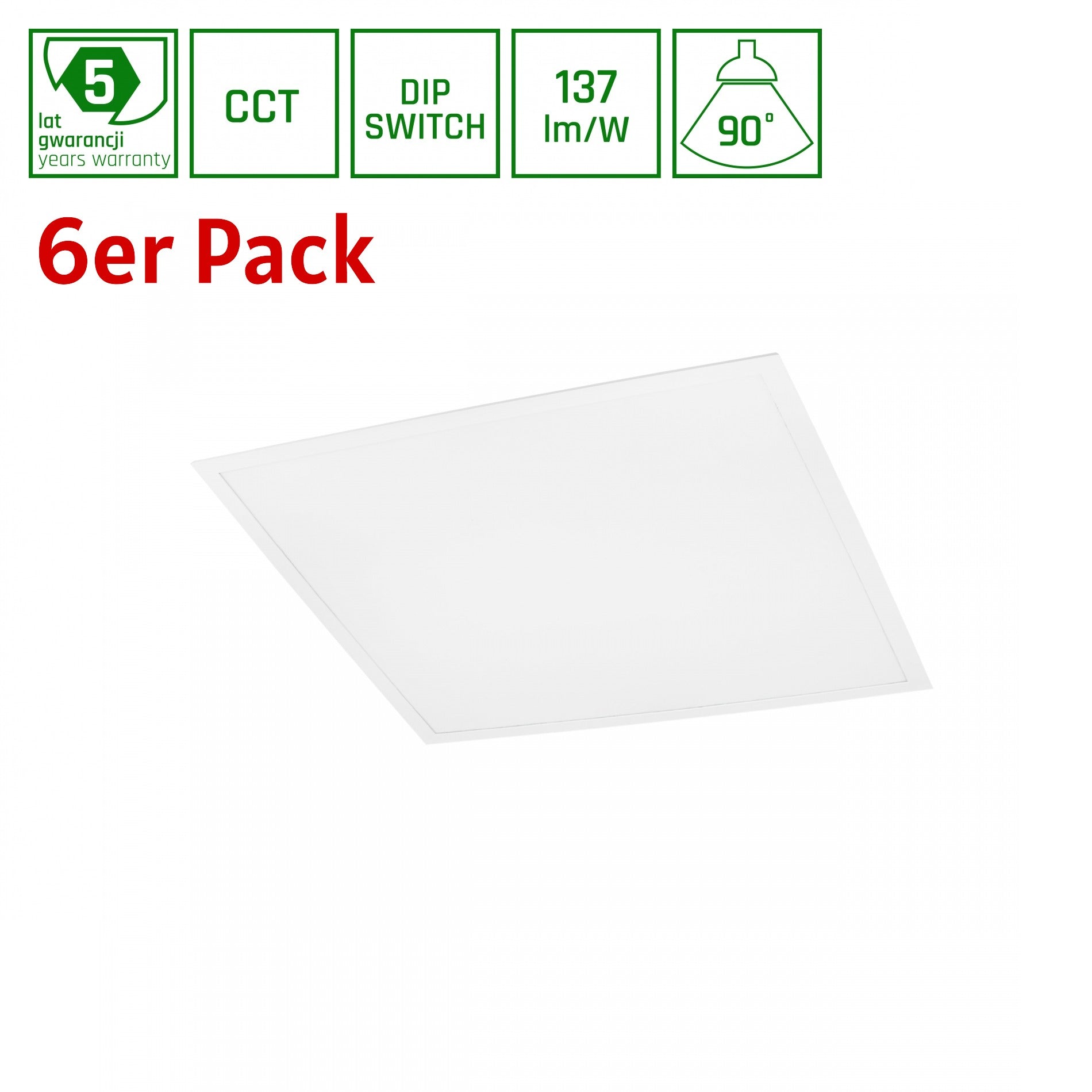

Scope of delivery: 6x RIMCLED ALGINE LED Panel, incl. power supply unit and mounting material for surface and recessed installation.
