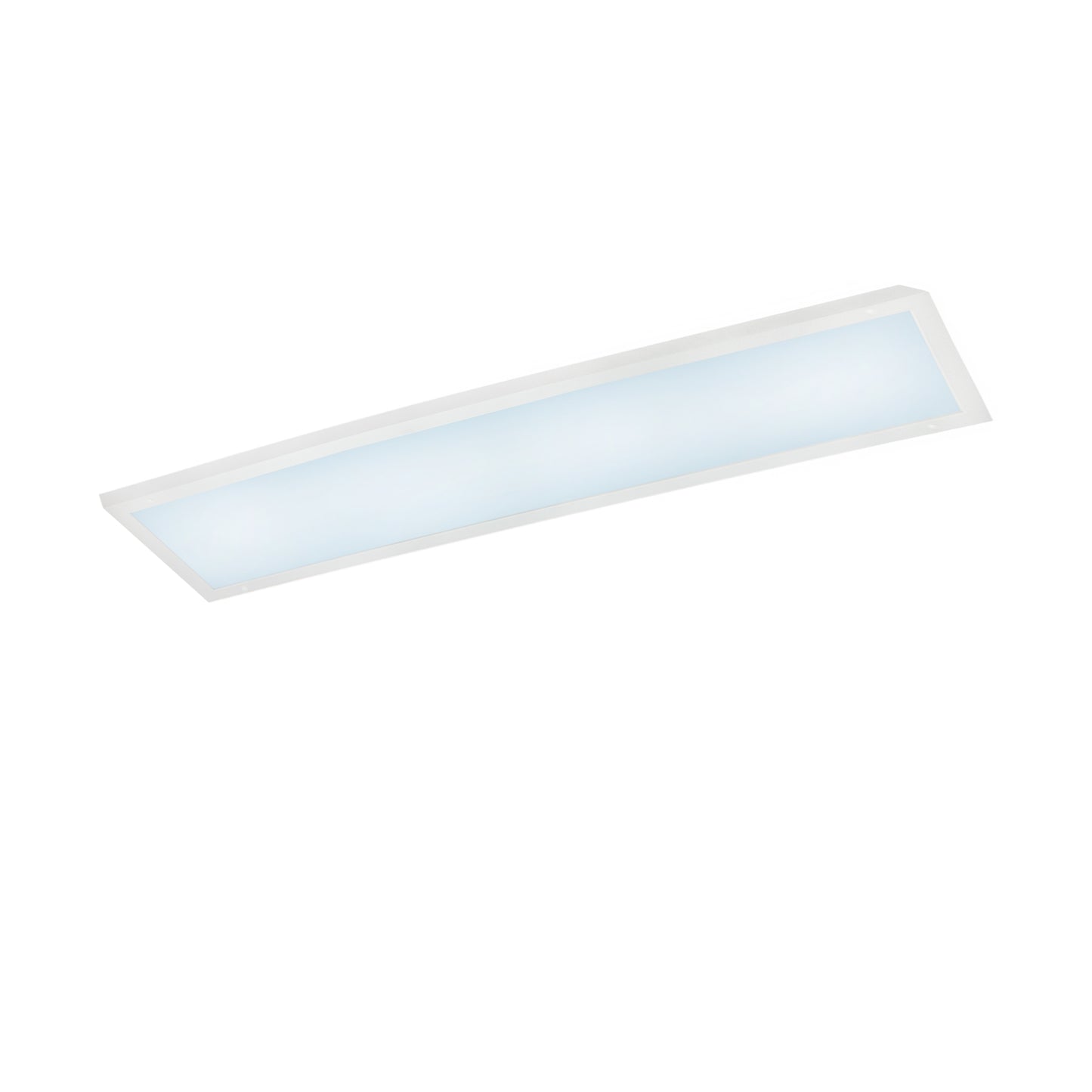

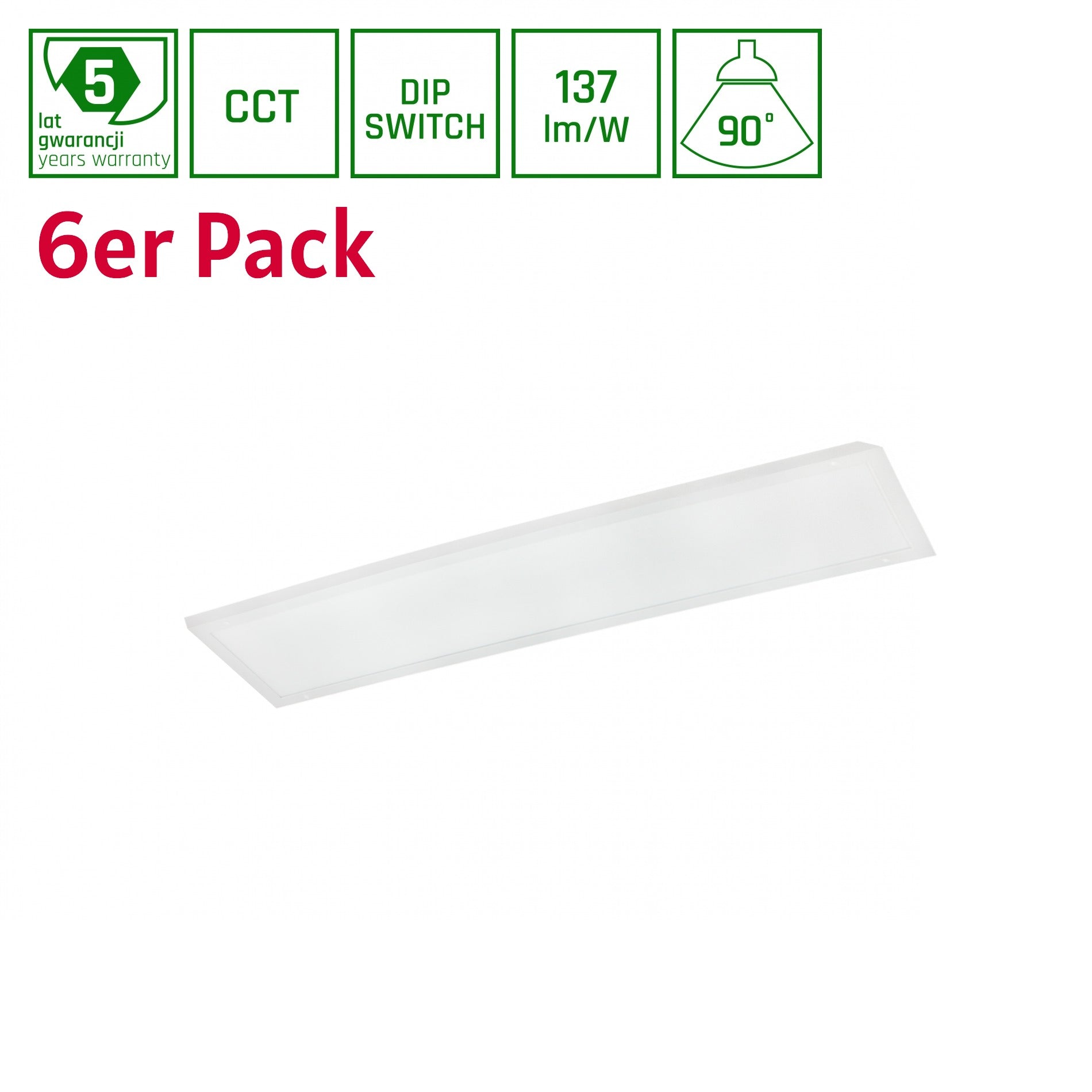

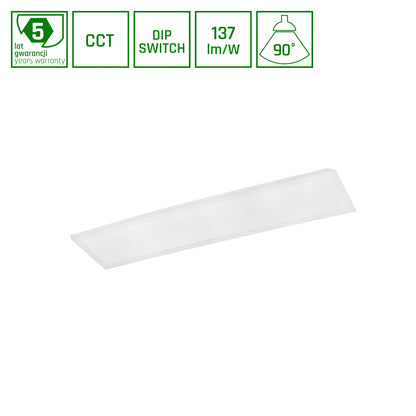

RIMCLED ALGINE LED Panel: Efficient and Flexible Lighting Solution
Experience a new dimension of lighting with the RIMCLED ALGINE LED Panel. This panel combines high energy efficiency with intelligent light control and is ideal for a variety of applications, from offices and retail spaces to public facilities. Thanks to RIMCLED's advanced LED technology, you not only enjoy excellent light quality but also long-lasting performance and reliability.
Maximum Adaptability Thanks to CCT and DIP-Switch
The RIMCLED ALGINE LED Panel gives you full control over your lighting. With the integrated CCT function (Correlated Color Temperature), you can flexibly choose the color temperature between warm 3000K, neutral 4000K, and cool 6000K – perfect for adjusting the light mood to different times of day or activities. Power regulation via the DIP switch on the power supply (selectable between 26W, 36W, and 46W) allows for precise adjustment of brightness and energy efficiency. This makes the panel an extremely versatile solution that seamlessly integrates into any environment and sets professional lighting accents.
Advanced Technology for First-Class Performance
The RIMCLED ALGINE LED Panel is characterized by its high-quality components and impressive light output of up to 137 lm/W. The low glare index of UGR 19 ensures pleasant and fatigue-free light, even during prolonged presence in the room. The slim, square design (30x120cm) in elegant white blends harmoniously into modern architectures and is suitable for both surface and recessed mounting. With a lifespan of 50,000 hours and a 5-year warranty, you are investing in a durable and low-maintenance lighting solution from RIMCLED.
Discover the perfect balance of functionality, efficiency, and modern design with the RIMCLED ALGINE LED Panel – for lighting that convinces.

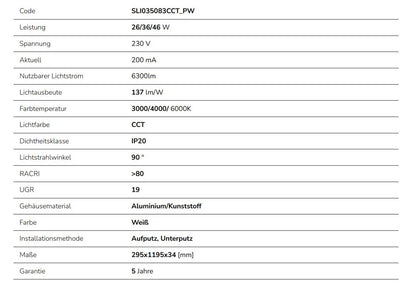

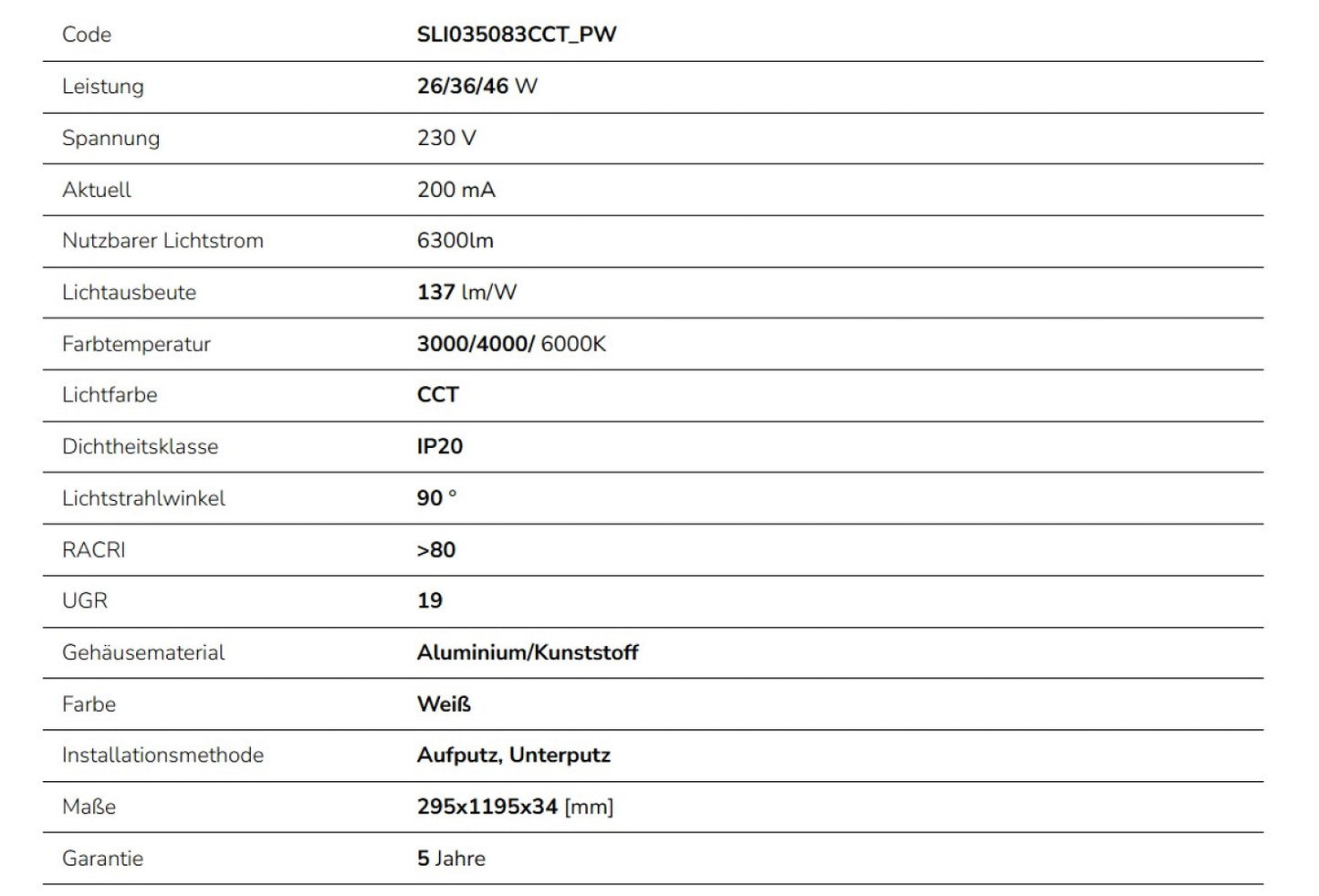

Technical Data at a Glance: RIMCLED ALGINE LED Panel
| Feature | Specification |
| Brand | RIMCLED |
| Model | ALGINE (LED Panel) |
| Item Number (HAN) | SLI035083CCT_PW |
| EAN | 5904433178846 |
| Lighting Technology | LED |
| Power (adjustable) | 26W / 36W / 46W |
| Rated Current | 200 mA |
| Voltage | 230 V |
| Energy Consumption | 46 kWh/1000h (at max. power) |
| Frequency | 50 Hz |
| Protection Class | I |
| Power Supply Included | Yes |
| Power Factor | 0.95 |
| Usable Luminous Flux | 6300 lm (at 46W) |
| Luminous Flux (variable) | 3120 lm (26W) / 4320 lm (36W) / 5520 lm (46W) |
| Lamp Efficiency | 137 lm/W |
| Light Color | CCT (adjustable) |
| Color Temperature (adjustable) | 3000K / 4000K / 6000K |
| Bulb Included | Yes |
| Beam Angle | 90° |
| Operating Temperature Range | -20°C to +40°C |
| Lifespan | 50,000 h |
| Housing Material | Aluminum / Plastic |
| Dimensions | 295 x 1195 x 34 mm |
| UGR (Glare Index) | 19 |
| Protection Class (IP) | IP20 |
| Housing Color | White |
| Mounting Method | Surface mounting / Recessed mounting |
| Application | Indoor |
| Dimmable | No |
| RA (Color Rendering Index) | >80 |
| Switching Cycles | 25,000 |
| Other | DIP switch for power setting (26/36/46W) |
| PZH Certification | Yes (suitable for rooms with increased hygiene requirements) |
Scope of Delivery: RIMCLED ALGINE LED Panel including power supply and all necessary mounting and installation accessories for recessed or surface mounting.
