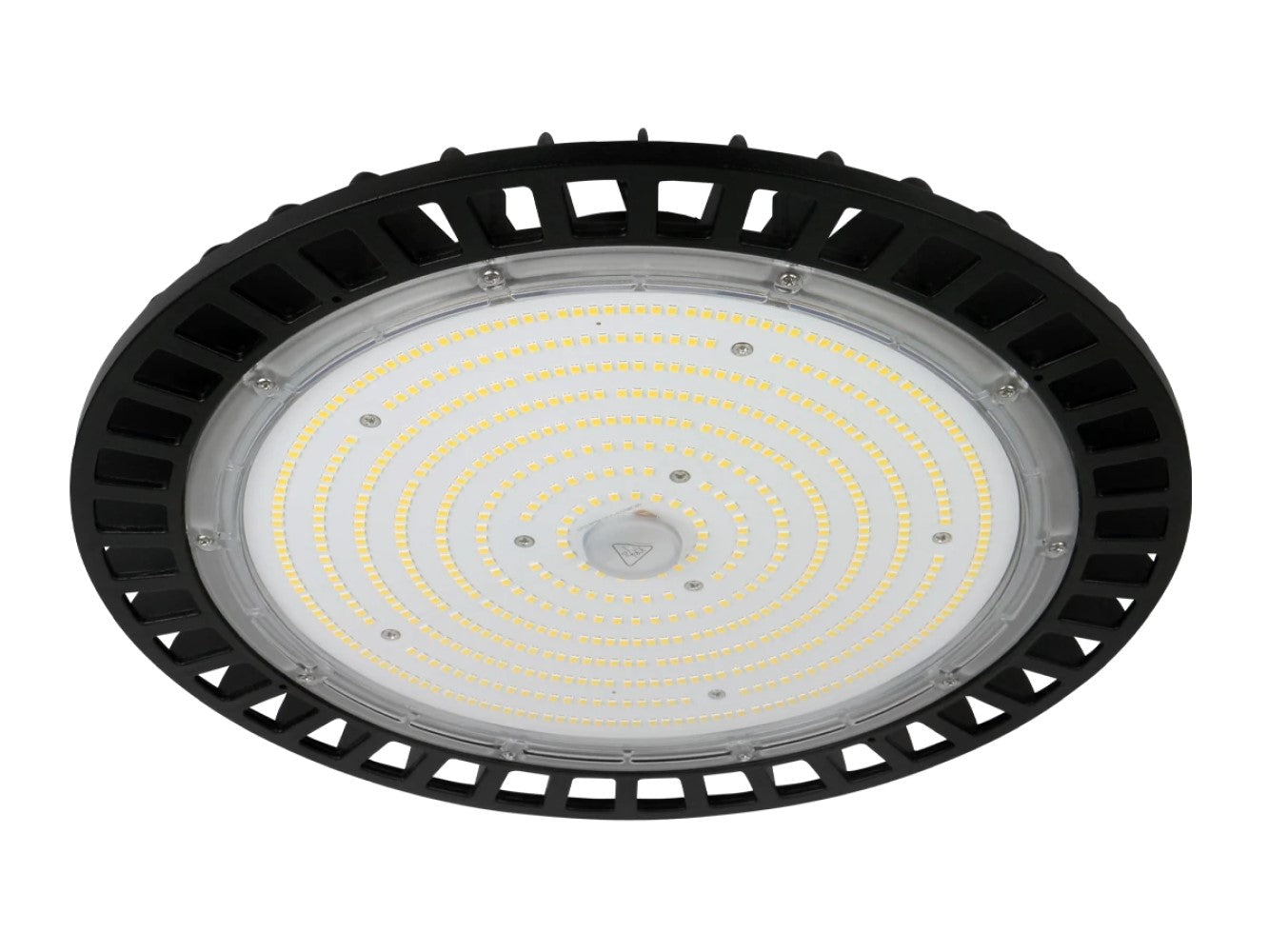

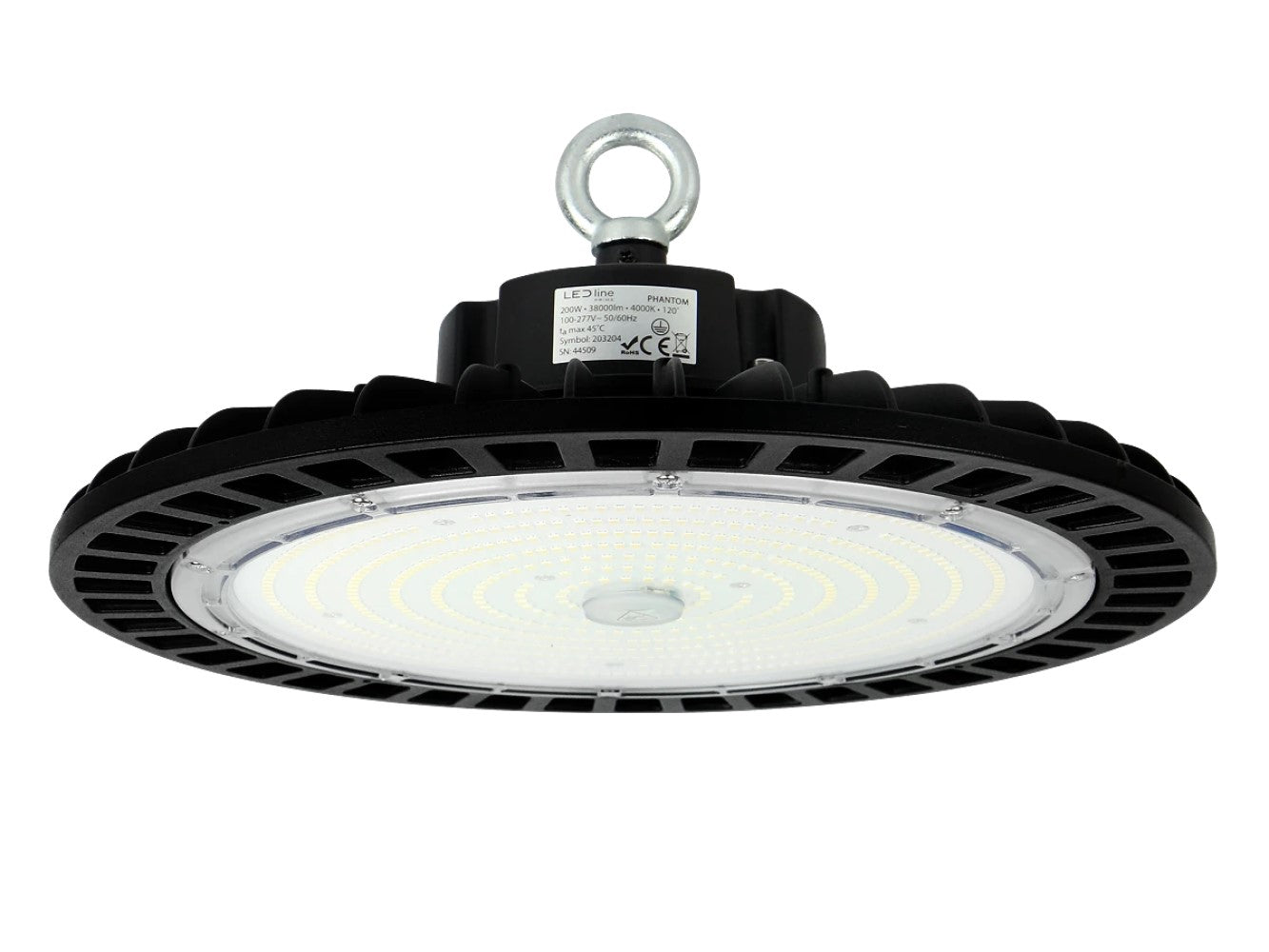

LED-line PRIME HIGH-BAY PHANTOM 200W High Bay Light 38000lm black 120° 100-277V IP65 Industrial Luminaire IK09 Neutral White 4000K 0-10V DIMMABLE
Couldn't load pickup availability
High-performance RIMCLED PRIME HIGH-BAY Industrial Luminaire for Professional Applications
Discover the RIMCLED PRIME HIGH-BAY – an industrial luminaire designed for outstanding performance and efficiency. With its robust construction and impressive light output, it is the ideal solution for demanding environments such as warehouses, production facilities, and sports arenas. Experience a new level of lighting that reduces your operating costs while ensuring optimal visibility.
Maximum Efficiency and Intelligent Control for Your Success
The RIMCLED PRIME HIGH-BAY impresses with a remarkable efficiency of up to 190 lm/W, enabling a significant reduction in energy consumption. Thanks to the optional integration of Merrytek sensors (MC054/MC079 series) and the Sosen power supply (1-10 V), the light intensity automatically adjusts to daylight. This leads to noticeable cost savings without compromising on brightness. For even more flexible control options, versions with DALI2 control are also available.
Robustness and Reliability for the Harshest Conditions

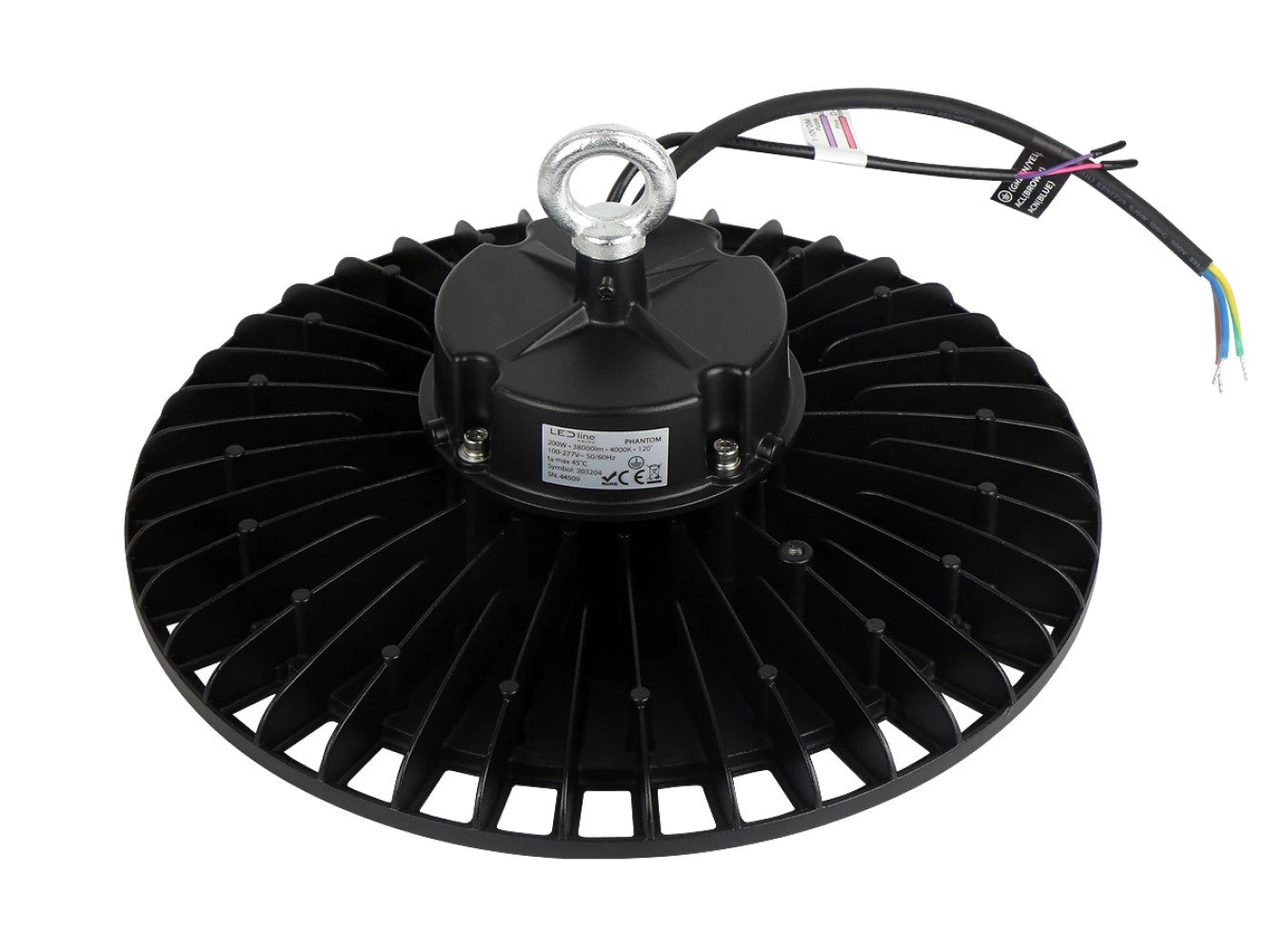

Made from solid aluminum, the RIMCLED PRIME HIGH-BAY is not only easy to install but also extremely durable. With an IP65 protection rating, it is well protected against dust and jet water. The IK09 certification also guarantees high impact resistance, so even accidental impacts cannot harm it. This luminaire is designed to function reliably in a wide temperature range from -30 °C to +45 °C – from cold storage to hot production halls.
Furthermore, the RIMCLED PRIME HIGH-BAY has a PZH certificate, which confirms its suitability for environments with the highest hygienic requirements, such as in the food or pharmaceutical industry.
Technology and Specifications in Detail: RIMCLED PRIME HIGH-BAY
| Feature | Specification |
|---|---|
| Brand | RIMCLED |
| Model | PRIME HIGH-BAY PHANTOM |
| Article number (HAN) | 203204 |
| EAN | 5905378203204 |
| Light source | LED |
| Power | 200 W |
| Luminous flux | 38,000 lm |
| Lamp efficiency | 190 lm/W |
| Light color | Neutral White |
| Color temperature | 4000 K |
| Beam angle | 120° |
| Color rendering (CRI) | RA 70 |
| Voltage | 100-277 V AC |
| Dimmability | Yes (0-10V) |
| Protection class (IP) | IP65 |
| Impact resistance (IK) | IK09 |
| Operating temperature range | -30 °C to +45 °C |
| Lifespan | 100,000 h |
| Housing material | Aluminum |
| Housing color | Black |
| Dimensions | 170 x 380 x 380 mm |
| Mounting method | Suspended luminaire (High bay) |

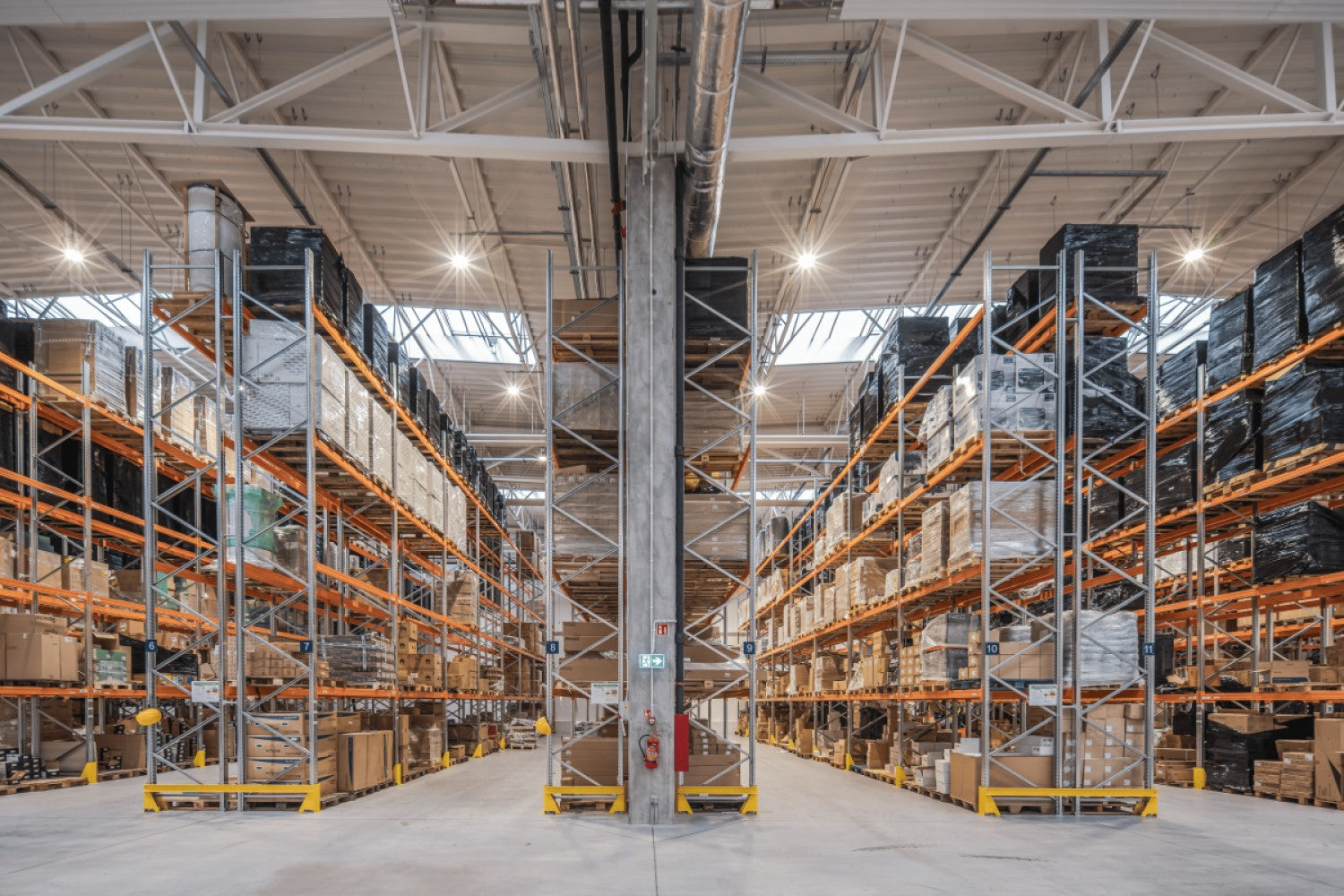

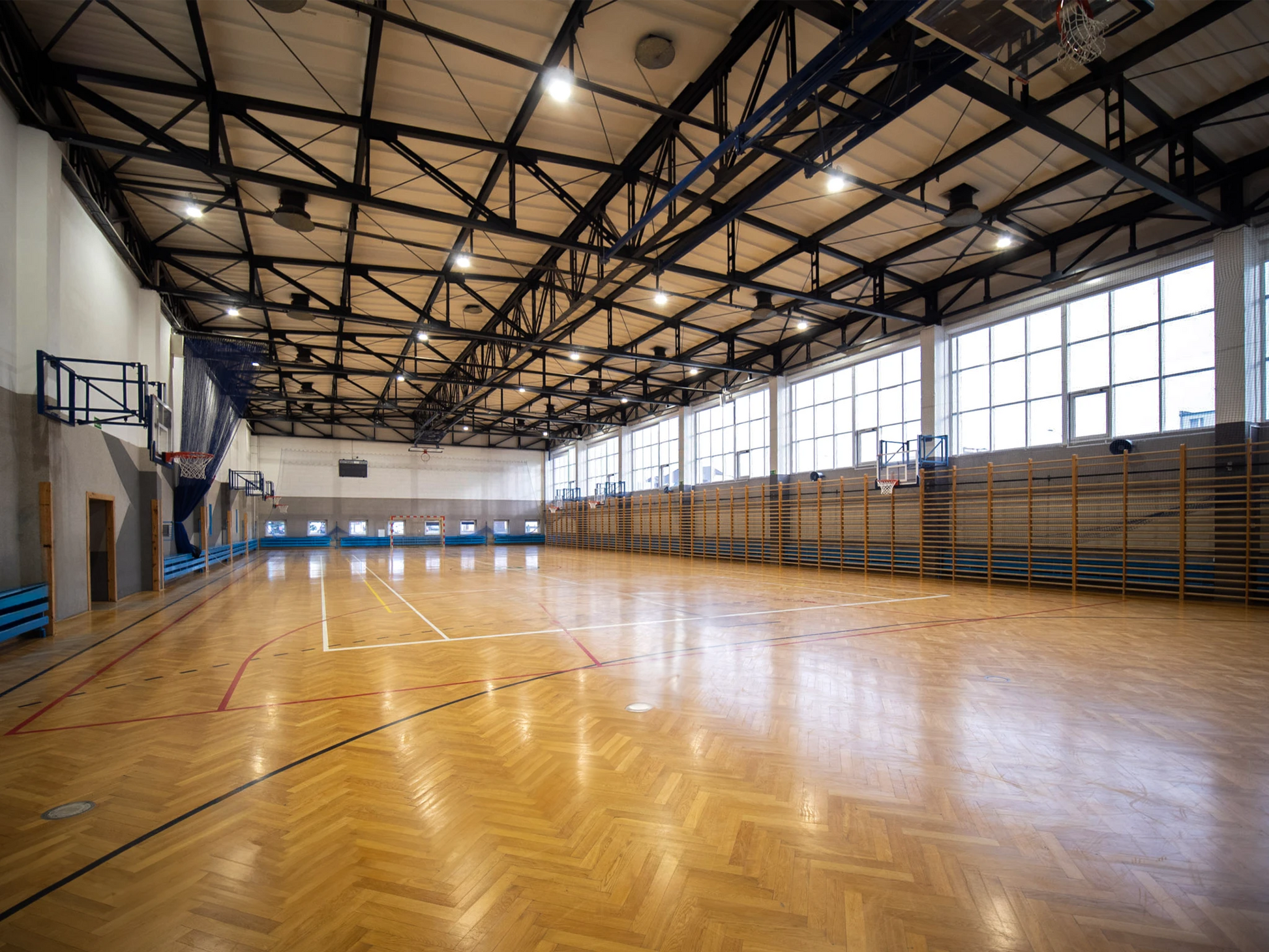

| Application areas | High-bay warehouses, logistics centers, production halls, assembly lines, sports facilities, food and pharmaceutical companies, sorting plants, cold storage |
| Additional certifications | PZH certificate |
| Warranty | 5 years |
